Product description
- Shipping included in retail price
- Storage cabinet for undamaged lithium-Ion batteries
- All-round protection: 90 min fire protection from the outside in and inside out
- Safety feature: Includes a pressure relief opening at the top of the cabinet, which remains closed under normal conditions but opens to release excess pressure if it builds up

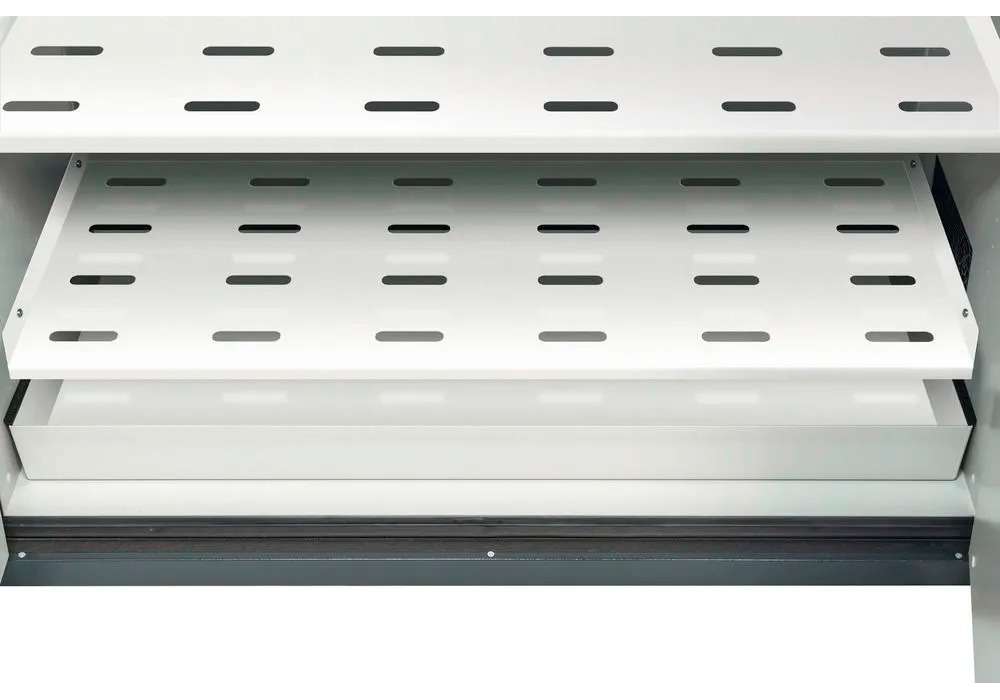

- With tested, liquid-tight spill sump (powder-coated sheet steel). For containment of any leaks from burning or defective batteries
- With adjustable feet to be used on uneven floor surfaces
- Each shelf measures 41 In X 17 In and has a weight capacity of 165 Lbs
- With permanently self-closing doors and quality oil-damped doors closer. Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
- Extremely robust construction with scratch-proof paints
- We strongly recommend that the cabinets be sited at the ground floor-level so that evacuation can take place quickly in the event of an incident
- Max weight for each battery is 33 lbs
- Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
- Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
- Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage
- There are currently no UL/FM/CSA testing standards specific to lithium-ion charging and storage
Technical data
Placement |
Bottom collection sump |
No. of shelves |
5 |
Surface |
Powder coat |
Material |
Sheet steel |
Fire Rating |
90 minutes |
Usage |
Storage |
Door Color |
Blue |
Body Color |
Machine Gray |
No. of Doors |
2 |
Internal Dimensions W x D x H [in] |
41.3 x 20.5 x 64.8 |
Sump Capacity [gal] |
0.6 |
External Dimensions W x D x H [in] |
47 x 24.21 x 77 |
Shipping Dimensions L x W x H [in] |
64 x 31 x 95 |
Shipping Weight [lbs] |
1,095 |
Weight |
1,079 |
Make |
asecos |
